TranslateHL7 CallBack

Overview

By using the TranslateHL7 CallBack, you can select a translation map based on the contents of the input data by modifying the Java code.

Note: This function is not available for XML input.

Enable Callback

To enable TranslateHL7 CallBack:

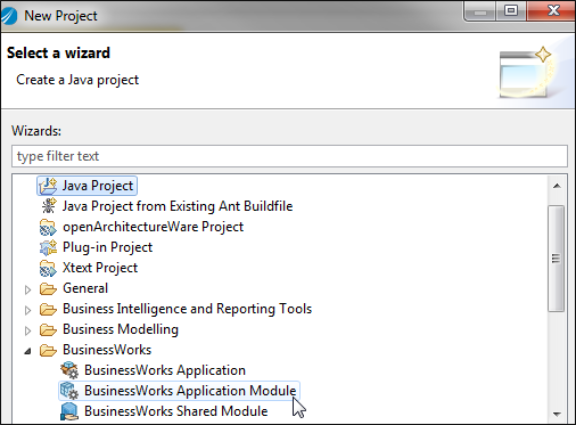

  1. Select the TIBCO ActiveMatrix BusinessWorks Application Module when creating a new project.

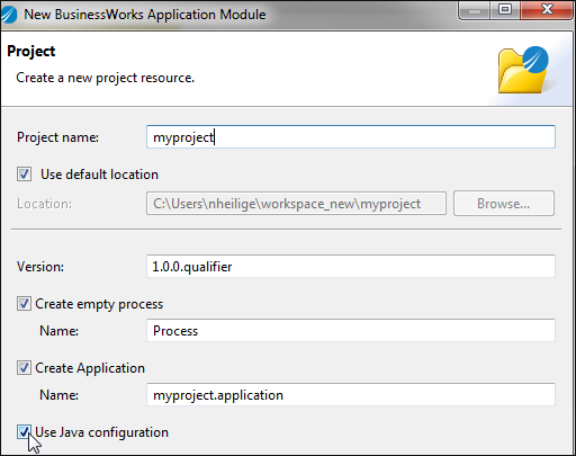

  2. Enter a project name, select the Use Java Configuration checkbox, and click Next.

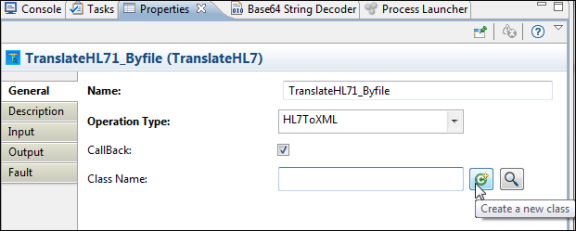

  3. Select the CallBack checkbox on the General tab of the TranslateHL7 activity and click Create a new class .

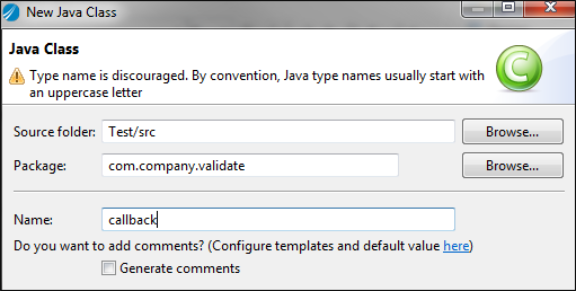

  4. Enter a class name and click Finish.

    A Java class is created with default functions and variables.

Result

The following (HL7 input) MSH information is set to HashMap<String, String> infoMap

 key = Info.ReceivingApplicationUniversalID
 key = Info.SendingFacilityNamespaceID
 key = Info.MessageTypeMessageStructure
 key = Info.MessageHeader, value = MSH
 key = Info.SendingFacilityUniversalID
 key = Info.ReceivingFacilityUniversalID
 key = Info.id, value = HL7
 key = Info.SendingFacilityUniversalIDType
 key = Info.ReceivingFacilityUniversalIDType
 key = Info.SendingApplicationNamespaceID
 key = Info.DateTimeofMessage
 key = Info.ReceivingApplicationNamespaceID
 key = Info.ReceivingApplicationUniversalIDType
 key = Info.SendingApplicationUniversalID
 key = Info.Version
 key = Info.ReceivingFacilityNamespaceID
 key = Info.MessageTypeTriggerEvent
 key = Info.SendingApplicationUniversalIDType
 key = Info.MessageTypeMessageCode

Use the “get” function to access the values in the map.

infoMap.get("Info.MessageTypeMessageCode")

Setting the Map, Source Guideline, and Target Guideline

Refer to the associated examples:

If Map Resides on Disk (Translator Database Directory)

Set up the Map file name.

  1. Directly assign the map name to variable mapFileName.

    mapFileName = “VXR_V03_VXR_V03_EX.map”;

  2. Update the configName variable with the format configName=mapname||.

    configName=“VXR_V03_VXR_V03_EX.map||”

If Map Resides in Memory (Database)

  1. Update the configName variable with the format configName = MapName|SourceGuidelineName|TargetGuidelineName;
  2. Assign the map image to variable mapFileBuffer =(map image in byte[]).
  3. Specify the source guideline variable with the format sourceGuidelineBuffer = (source guideline image in byte[]);
  4. Specify the target guideline variable with the format targetGuidelineBuffer = (target guideline image in byte[]);
