Salesforce Composite Batch

The Salesforce Composite Batch activity executes a set of independent subrequests in a single request. Information cannot be passed from one subrequest to another.

General

On the General tab, you must provide the following information to establish a connection with the Salesforce.com server:

Field Module Property? Description
Name No The name displayed as the label of the activity in the process
Salesforce Connection Yes The path to the Salesforce shared resource.

Click Choose/Create Default Resource to select a usable connection for the activity.

Description

On the Description tab, you can enter a short description for the Salesforce Composite Batch activity.

Input

On the Input tab, you can provide the following input values for the Salesforce Composite Batch activity:

Input Item Data Type Description
SalesforceSessionInput (All fields in this section are optional.)
externalSessionUsed Boolean Specifies whether an external session ID is used (true) or not (false).

If the value is set to true, an external session ID is filled in the sessionId field.

In this case, when the session has to be refreshed, the refreshed operation cannot be performed and an error occurs.

sessionId String The unique ID associated with this session
serverURL String The URL of the endpoint that is used by this operation
jsonBody | batchRequests The body of the subrequest in JSON format or using Salesforce Composite Batch subrequest.

For more information about creating batch requests, see Creating a Composite Dependent Subrequest
SalesforceOptionalInput (All fields in this section are optional.)
timeout Integer The timeout value.

It specifies the duration (in milliseconds) for which an internal API call waits before data is returned.

HttpHeader (All fields in this section are optional.) Request headers and their values to include with the subrequest.

For more information, see the Salesforce Composite API documentation.

key String HTTP header name
value String HTTP header value

Creating a Salesforce Composite Batch Subrequest

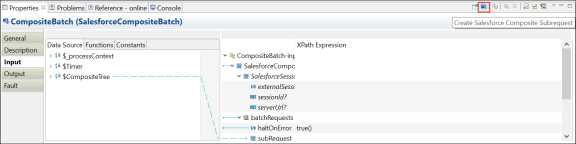

  1. To create a subrequest, in the upper right corner of the Input tab, click Create Salesforce Composite Subrequest.

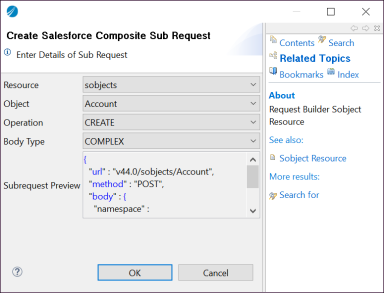

  2. In the Create Salesforce Composite Sub Request dialog box that is displayed, select the resource. Depending on the resource selected, provide further inputs and click OK.

    • If the resource selected is queryAll or query, then you can use the Query Builder to form the SOQL.

      For more information about using the Query Builder and its options, see Salesforce Query Builder.

    • If the resource selected is search, then you can use the Search Query Builder to form the SOSL.

      For more information about using the Search Query Builder and its options, see Salesforce Search Query Builder.

The following fields appear on the Input tab. For more information about these fields, see the Salesforce Composite API documentation.

Input Item Data Type Description
batchRequests
haltOnError Boolean Specifies what to do when an error occurs while processing a subrequest.
subRequest
url String URL of the REST API endpoint.
method String HTTP method (Examples: GET, POST).
binaryPartName String Name of the binary part in the multipart request.
binaryPartNameAlias String Name parameter in the Content-Disposition header of the binary body part.
richInput Input for the request.
jsonbody | binarybody? | sobject?? Provide input for the subrequest body.

Condition: The sobject is substituted with the object type only when you select the following items in the Salesforce Composite Subrequest wizard:

  • Resource: sobjects
  • Operation: Create or Update
  • Body Type: Complex



Output

The Output tab displays the activity results.

The following table lists the output elements on the Output tab of the Salesforce Composite Batch activity. For more information about these fields, see the Salesforce Composite API documentation.

Output Item Data Type Description
SalesforceCompositeBatchOutput
hasErrors Boolean true - This value is displayed when at least one of the results in the result set is an HTTP status code in the range of 400 to 500.

false - This code is displayed when there are no errors.

results Collection of subrequest results.
statusCode String An HTTP status code for the current subrequest.
result String Response body of this subrequest.

Fault

On the Fault tab, you can find the error code and error message of the Salesforce Composite Batch activity. For more information about the error codes and the corrective actions to take, see Error Codes.

Fault Generated when
SalesforceRestException There is a problem with REST request, response, or some other REST API issue.
SalesforceLoginException An error occurs when logging in to the Salesforce.com server.
SalesforceConnectionNotFoundException An error occurs when the external session ID is not used or the Salesforce connection is not configured correctly.
