Combining Schemas Using Keywords

You can use the oneOf, anyOf, and allOf keywords to combine schemas.

• oneOf keyword: ensures that the given data is valid against exactly one of the selected subschemas.
• anyOf keyword: ensures that the given data is valid against one or more of the selected subschemas.
• allOf keyword: ensures that the given data is valid against all the subschemas.

Using the oneOf Keyword

Procedure

1. On the schema object in the activity/trigger input, click the ellipsis icon .

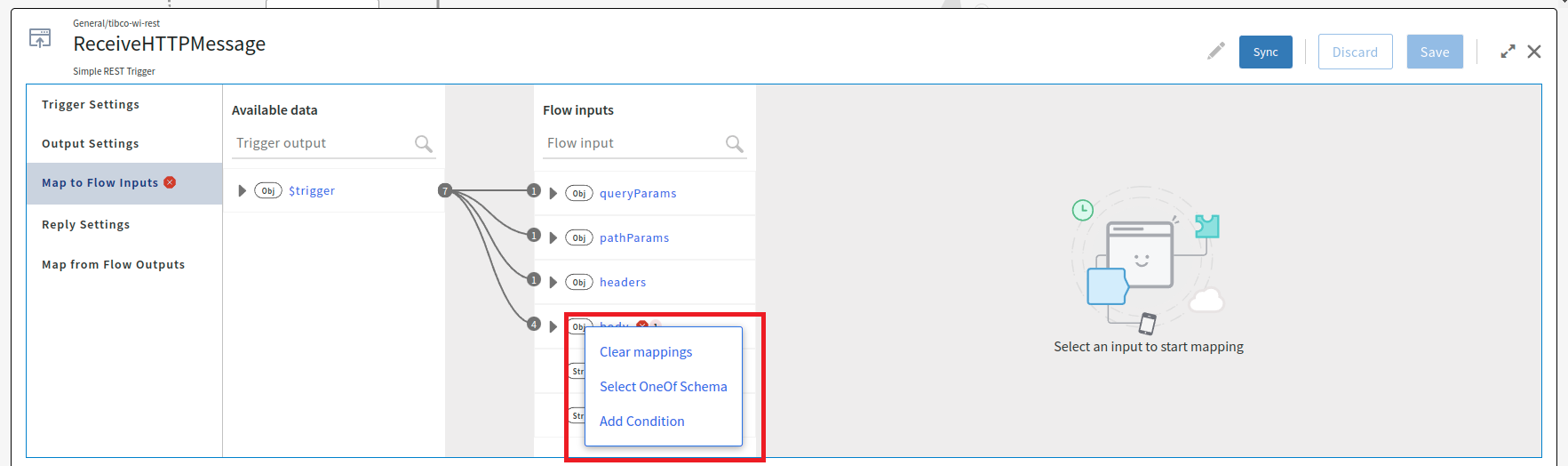

   For an object with a oneOf keyword, the Select OneOf Schema option is displayed.



   Note: Select the Select OneOf Schema option before you add the if/else conditions using the Add Condition option. If you add the if/else conditions first, then the Select OneOf Schema option is not displayed in the menu.

2. Click Select OneOf Schema.

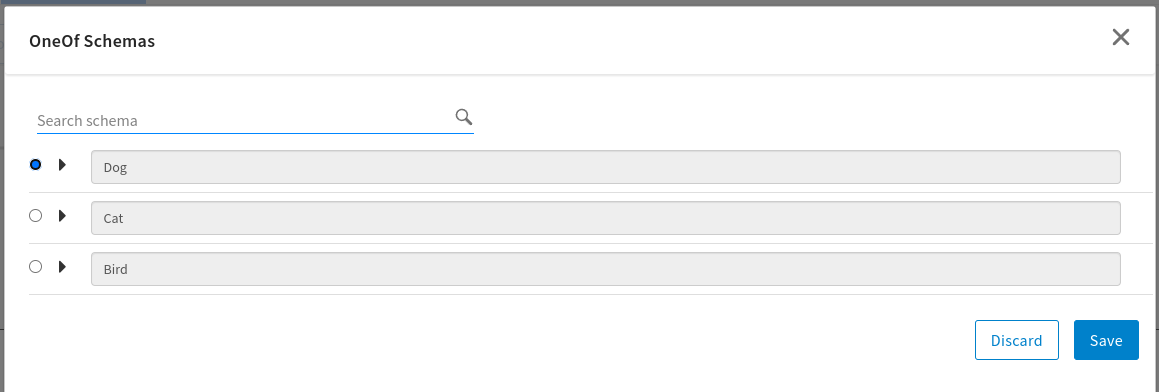

   The schema selector dialog displays all available schemas with a oneOf array.



3. Select one schema from the schema selector dialog.

Using the anyOf Keyword

Procedure

1. On the schema object in the activity/trigger input, click the ellipsis icon .

   For an object with the anyOf keyword, the Select AnyOf Schema option is displayed.



   Note: Select the Select AnyOf Schema option before you add the if/else conditions using the Add Condition option. If you add the if/else conditions first, then the Select AnyOf Schema option is not displayed in the menu.

2. Click Select AnyOf Schema.

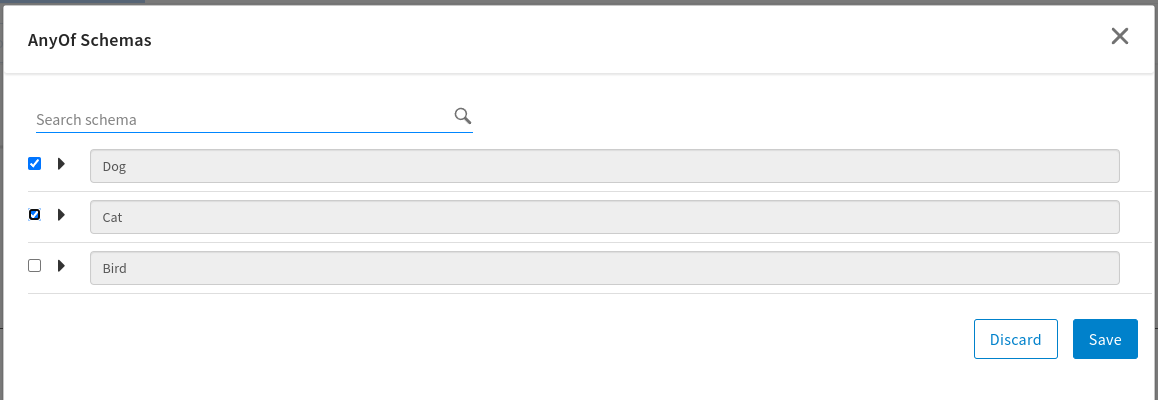

   The schema selector dialog displays all available schemas with the anyOf array.



3. Select one or more schemas from the schema selector dialog.
