SearchForResource Example

For more information about searching for a FHIR resource, see Search for Resource.

SearchForResource Process

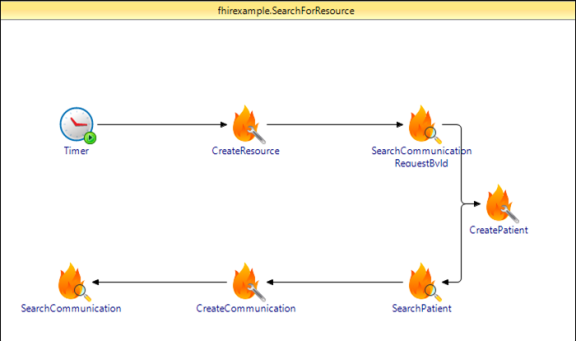

The SearchForResource process is illustrated in the following image:

Process Definition

The process performs the following operations:

• The Timer activity starts the process.
• The CreateResource activity is used to create a CommunicationRequest FHIR resource with a unique ID.
• The SearchCommunicationRequestById activity searches the Communication Request by input ID.
• The CreatePatient activity is used to create Patient resources.
• The SearchPatient activity searches the Patient information by two parameters: active (state) and gender.
• The CreateCommunication activity is used to create Communication resources.
• The SearchCommunication activity searches for a Communication Request based on sender input.
• After the process executes successfully, a Success message is written to the Console. Select Window > Show Console in TIBCO Business Studio to view the log messages.

Process Output

Select the desired activity and click the Output tab.

• The CreateResource activity output displays the CommunicationRequest FHIR resource that was created.
• The SearchCommunicationRequestById returns data matching the requested search by ID.
• The CreatePatient activity outputs Patient ID.
• The SearchPatient activity returns data matching the requested search of Patient information by active (state) and gender.
• The CreateCommunication outputs Communication resource ID.
• The SearchCommunication activity returns data matching requested search of the Communication Request by sender input.
